AN OVERVIEW OF TVIP Box:
The TVIP Box is a crucial device as it enables your TV to receive and interpret internet protocol signals by converting them into a compatible format. Its functionality is essential, given that televisions lack the built-in capability to process signals received via the Internet.
TVIP BOX is a type of set-top box that can convert internet protocol signals into a format that can be read and interpreted by your TV. It is important because your TV does not have any built-in system to interpret the signals received via the Internet.
NOTE:
Do not forget to write the mac address written on the back of the box of your device while taking the trial broadcast.
HOW TO SETUP IPTV ON A TVIP BOX:
1st. stage: setup IPTV on the new version of TVIP BOX:
Step 1: run the TVIP box and set the primary setting like language and time.
Step 2:Start from the main menu and go down to see the “Setting” and click on “TV” as depicted in the below picture.
Step 3: Now change the Content source to “Web portal” and click on “Setup Web portal”.
Step 4: Firstly change the API Mode to “MAG”, then enter “Portal URL:” that your IPTV provider provide you. Then click “Apply” and “Restart”.
Step 5: After restarting the box in the main menu click on “Watch TV”, you must wait for the portal to load your playlist. This might take a few minutes.
Step 6: As you will see the channels will pop up automatically and you can select any desired channel and start the streaming.
2nd. stage: setup IPTV on the old version of TVIP BOX:
Step 1: Start from the main menu and select the “Setting” as depicted in the below picture.
Step 2: Now on the right menu select the “TV” icon and then on the right side change the Content source to “Web portal” and click on “Setup Web portal”.
Step 3: Now type “Portal URL:” that your IPTV provider provide you and click” Apply “button.
Step 4: After adding your portal server address, you must wait for the portal to load your playlist. This might take a few minutes.
Step 5: As you will see the channels will pop up automatically and you can select any desired channel and start the streaming.
How to add M3u Plus link to TVIP Box:
Step 1: After run the TVIP box and set the primary setting like language and time, Start from the main menu and go down to see the “Setting” and click on “TV” as depicted in the below picture.

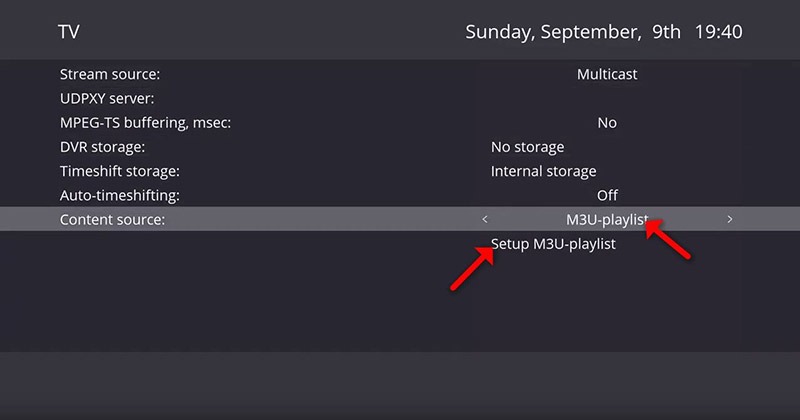

Step 2: Change the content source to “M3U-playlist” and click on “Set up M3U-playlist”.
Step 3: Enter M3U url which you receive from your IPTV provider here and click on “Apply” and “Restart”.
TVIP S-Box media centers:
A wide range of TVIP S-Box models allows you to choose a mediacenter that meets you project requirements better. TVIP Mediacenters are universal and we can provide exactly what you need.
Mediacenter TVIP S-Box v.706:
Mediacenter TVIP S-Box v.710:

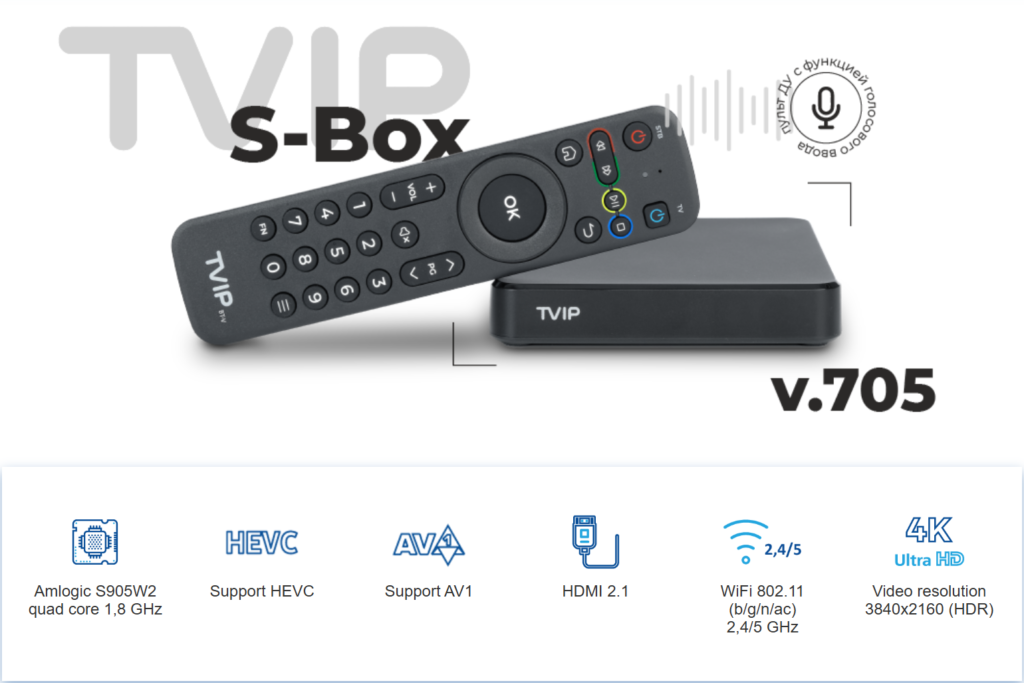

Mediacenter TVIP S-Box v.705:
Mediacenter TVIP S-Box v.530:
Mediacenter TVIP S-Box v.525:
Mediacenter TVIP S-Box v.610:
Mediacenter TVIP S-Box v.605:
IPTV/OTT Platform TVIP TMS:
TVIP TMS is a platform for creating advanced IPTV/OTT solutions, representing a comprehensive tool that allows for easy creation of custom IPTV/OTT services and efficient management thereof. The platform’s functionality includes a wide range of capabilities, from content and user management to interface customization and monetization. TVIP TMS ensures the reliability and high performance necessary for the successful launch and development of your television business.
Some platform functions can be implemented using TVIP Mira software or its counterparts. To fully utilize all the capabilities of the TVIP TMS Pro platform, streams must be transcoded and packaged into HLS or DASH formats. To protect streams from unauthorized access, we recommend using TVIP CAS or Widevine.
The TVIP TMS platform is distributed free of charge and without any legal relationship between TVIP Labs and the customer.
Support is provided via the portal https://helpdesk.tvip.tv.
The TVIP TMS Pro platform is distributed on a commercial basis and requires a legal relationship. The commercial version includes turnkey deployment of the platform and all related subsystems on the customer’s equipment. Priority support is provided through the portal https://helpdesk.tvip.tv.
